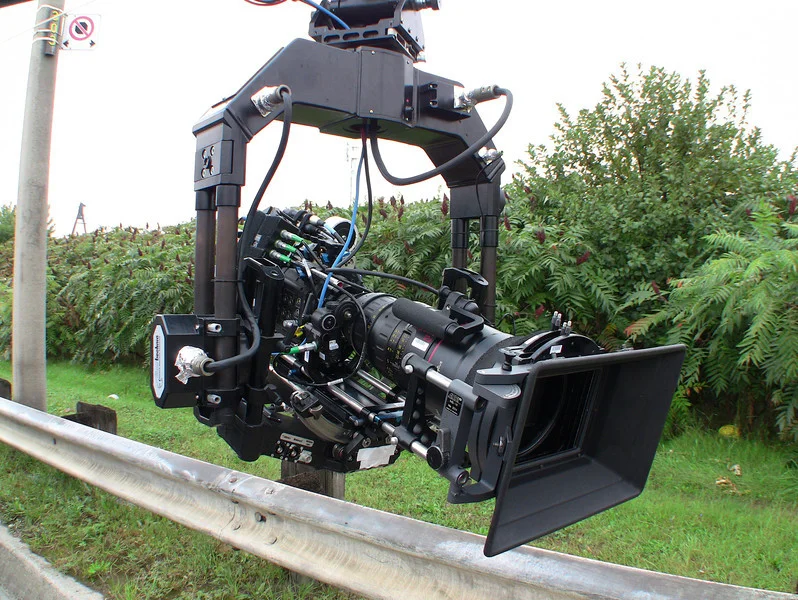

Flight Head Compact

The Flight Head Compact's unique 4-axis gyro-stabilized design eliminates all bumps & vibrations resulting in an extremely smooth and stable picture (10 - 500mm film lenses). It provides complete control of the camera and lens function and is operated via joystick or hand wheels.

*** NOTE: WITH THE RUSSIAN ARM WE RECOMEND JOYSTICK CONTROL FOR PERFORMANCE AND SAFETY REASONS ***

The Flight Head Compact is the perfect head for: Super Techno Cranes, Shock Absorber, Camera Cars, Chase Cars, Boats, FTSI 2D/ 3D Cable Flight Systems, Remote Dollies.

Specifications

• 4 Axis Gyro-Stabilized.
• Back-pan compensation.
• RF Wireless capability.
• Auto Horizon always keeps camera level even in hi G turns.
• Pan axis travels through 360° with back-pan compensation.
• Roll axis travels through ± 35° with auto horizon.
• Tilt Axis travels through 200°.
• Pan Speed, Roll Speed, Tilt Speed 160 °/sec.
• Gyros can be turned off for a dynamic effect.
• Preston FIZ plugs into head console to give Zoom control on the left joy stick.
• Payload capacity up to 66lbs (30 kg).
• Light Weight only 40lbs (18 kg).
• Temperature range from -40°F up to +104°F (-40 °C to +40 °С).
• Mounts to standard Mitchell base.

Power Requirements

• 24-30 VDC
• 2 Amps Standby
• 15 Amps Din. Max

Dimensions

• Length 30in (76 cm)
• Width 22in (56 cm)
• Height 40in (100 cm)
